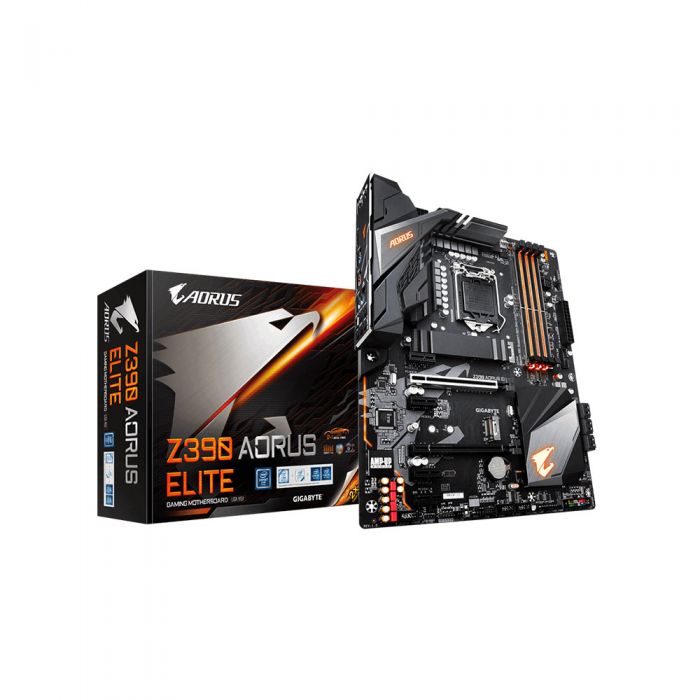

Gigabyte Z390 AORUS ELITE, Socket 1151, DDR4, ATX, Motherboard

£169.99 £174.99
SKU
SK-17816
Availability: Out of stock
  • Gigabyte Z390 AORUS ELITE
  • Socket 1151
  • 4 x DDR4
  • 6 x SATA3
  • Dual M.2
  • 2-Way CrossFire
  • Intel GbE
  • USB 3.1 Gen2 A
  • Full ATX
More Info
Add to Compare
  • Edition - Z390 AORUS ELITE
  • Form Factor - ATX
  • CPU Socket - 1151
  • Chipset Intel - Z390
  • Memory Type - DDR4
  • Memory Channel - Dual (2)
  • Memory Type (ECC) - Non-ECC
  • Memory Type (R/U) - UDIMM (Unbuffered)
  • Memory Speed (Mhz):
  • - DDR4 - 2133
  • - DDR4 - 2400
  • - DDR4 - 2666
  • Max. Memory Capacity - 64GB (4x16GB)
  • Audio - Realtek ALC1220-VB 7.1 HD Audio
  • Primary GPU Interface - PCIe 3.0 (x16)
  • NVIDIA SLI Support - Not Supported
  • AMD CrossFire Support - 2-Way CrossFire
  • On-Board Graphics Connectors - HDMI 1.4
  • Expansion Slots:
  • - 1 x M.2, 2242/2260/2280, PCIe/SATA
  • - 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • - 4 x PCIe 3.0 x1
  • - 1 x PCIe 3.0 x16
  • - 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • SATA Support - SATA3 / M.2
  • RAID Support via - SATA
  • Storage Mode Support:
  • - Intel Optane Memory Ready
  • - NVMe Boot (via M.2 PCIe Slot)
  • - NVMe Boot (via PCIe 3.0 Slot)
  • - RAID 0 (SATA 0~5 ONLY)
  • - RAID 1 (SATA 0~5 ONLY)
  • - RAID 10 (SATA 0~5 ONLY)
  • - RAID 5 (SATA 0~5 ONLY)
  • Internal I/O:
  • - 1 x 24-pin (Power)
  • - 1 x 4-pin (Power)
  • - 1 x 4-pin CPU Fan Connector
  • - 1 x 4-pin CPU OPT Fan Connector
  • - 3 x 4-pin System Fan Connector
  • - 1 x 8-pin (Power)
  • - 1 x Clear CMOS jumper
  • - 2 x Digital LED strip header
  • - 2 x Digital LED Strip Power Select Jumper
  • - 1 x Front Panel Audio Header
  • - 1 x Front Panel Connector
  • - 2 x RGB LED connector
  • - 1 x S/PDIF-Out Header
  • - 6 x SATA III - 6Gb/s
  • - 1 x Thunderbolt AIC Connector
  • - 1 x TPM 2.0 Header
  • - 2 x USB 2.0 Header
  • - 1 x USB 3.1 Gen1 Header
  • - 1 x USB 3.1 Gen1 Type-C Header
  • Network Interface Type - Wired Gigabit LAN (10/100/1000)
  • Network Chip/Modules - 1 x Intel (Gigabit LAN)
  • Rear I/O Connectors:
  • - 1 x Center/Subwoofer Speaker Out
  • - 1 x HDMI 1.4
  • - 1 x Line In
  • - 1 x Line Out
  • - 1 x Mic-In
  • - 1 x Rear Speaker Out
  • - 1 x RJ-45
  • - 1 x S/PDIF-Out (Optical)
  • - 4 x USB 2.0
  • - 4 x USB 3.1 Gen1 Type-A
  • - 2 x USB 3.1 Gen2 Type-A
